ORC-T009603N-V01 is a IPS Mini TFT LCD display module that uses amorphous silicon TFT as a witching device. This TFT LCD has a 0.96 (1:2) inch diagonally measured active display area with 80x160 vertical pixel resolution.This 0.96" TFT module is built-in with ST7735S controller IC, it supports 4-wire SPI interface, supply voltage (VCC) range is from 2.5V to 3.3V, with brightness 500 nits (min value), contrast ratio 800.
▍Specification
Name: SPI interface 0.96inch lcd module manufacturing for smart bracelet
Parameter:
| LCD Model No. | ORC-T009603N-V01 |
| Diagonal Size | 0.96inch |
| Resolution | 80x160 |
| Display Mode | IPS/Normally black |
| Active Area | 10.8(H)*21.7(W)mm |
| Outline Dimension | 13.5(H)*27.95(W)*1.5T)(Exclude FPC)mm |
| Viewing Angle | ALL |
| IC | ST7735S |
| Luminance | 500cd/m2 |
| Interface Type | SPI4 |
| Environment | Operating Temp.: -20 ~ 70°CStorage Temp.: -30 ~ 80 °C |
| Touch Panel | None |
High Quality!
Large Stock!
Fast Delivery!
Cost-Effective!
Competitive Price!
Long-term Supply!
Excellent After-sales Service!
Welcome to contact us and get our best service!
Drawing:

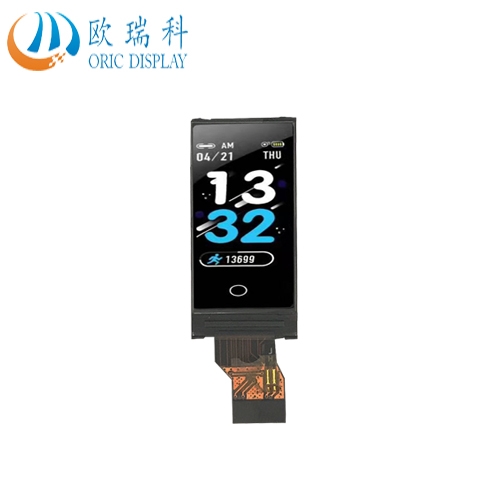

Sample Picture
▍Application:
Various instruments, smartwatch, smart bracelet, communication equipment, medical equipment, industrial control equipment, aerospace, security, furniture, intelligent equipment.
