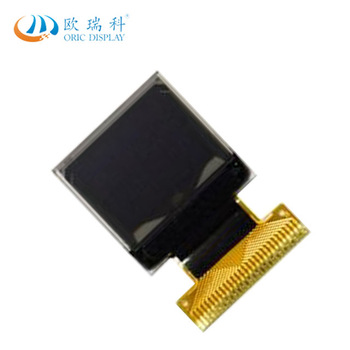

0.66 inch OLED display/display module/64x48 dot matrix/IIC/SPI interface
Product model: ORC6448-Z
Resolution: 64*48
Interface: 80804-bit parallel port, 80808-bit parallel port, I2C, 4-wire serial port SPI
IC or Compatible IC: SSD1306
Display and Background Colors: Black and Blue Characters
Screen size: 0.66 inches
Connection mode: FPC
Shape size: 18.46 x 29.60 x 1.45 mm
VA District: mm
AA area: 13.42 x 10.06mm
Point size: 0.19 x 0.19 mm
Point spacing: 0.21 x 0.21 mm
Visible range: 160 degrees
Color:
Voltage: 2.8V
Display type: OLED
Optional touch screen:
Working temperature: -40-70 C
Storage temperature: - 40 - 85 C
ORC6448-Z is a 0.66 inch OLED display screen with white font. 64x48 dot matrix, SSD1306 controller, 8080804-bit/8-bit parallel interface and I2C, 4-wire SPI serial interface, 2.8V voltage, OLED self-luminescence does not need backlight, which makes it ultra-thin, low power consumption, ultra-high contrast and angle of view, working temperature - 40 ~70 C. FPC connection, can be directly welded to PCB without connectors, all materials meet the environmental requirements of RoHS standard, this module is widely used in various instruments, intelligent equipment.
