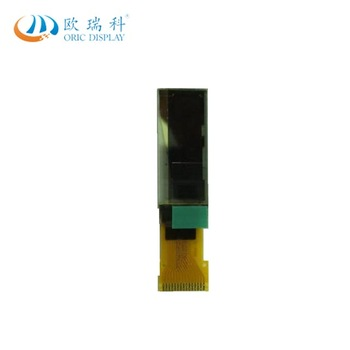

0.91 inch OLED display/display module/128x32 dot matrix/IIC/SPI interface
Product model: ORC12832-02B
Resolution: 128*32
Interface: 12C
IC or Compatible IC: SSD1306
Display and Background Colors: Black and Blue Characters
Screen size: 0.87 inches
Connection mode: FPC
Shape size: 30.0 x 11.5 x 1.2 mm
Area VA:
AA area: 22.384 x 5.584 mm
Point size: 0.159 x 0.159 mm
Point spacing: 0.175 x 0.175 mm
Visible range: 160 degrees
Color:
Voltage: 2.8V
Display type: OLED
Optional touch screen:
Working temperature: -40-70 C
Storage temperature: - 40 - 85 C
ORC12832-02B is a 0.91-inch OLED display screen with white font. 128x32 dot matrix, SSD1306 controller, 12C interface, 2.8V voltage, OLED self-luminescence does not need backlight to make it ultra-thin, low power consumption, ultra-high contrast and angle of view, working temperature - 40 ~70 C. FPC connection, can be directly welded to PCB without connectors, all materials meet the environmental requirements of RoHS standard, this module is widely used in various instruments, intelligent equipment.
