192 Dot Matrix LCD Display Panel
192 x 64 lattice
LCD 19264 LCD/LCM192x64 Graphic Lattice LCD Module/White Character on Blue Background
Product model: ORC19264-01A3
Resolution: No
Interface: no
IC or Compatible IC: ST7525
Display and Background Color: White Characters on Blue Background
Screen size: No
Connection mode: FPC
Shape size: 41 x 21.8 x 2 mm
Area VA: 37.4 x 14 mm
AA area: 36.46 *12.588 mm
Point size: No
Point spacing: No
Visual range: 6:00
Color: no
Voltage: 10V
Display Type: LCD LCD Display
Optional Touch Screen: No
Working temperature: -20-70 C
Storage temperature: - 30 - 80 C

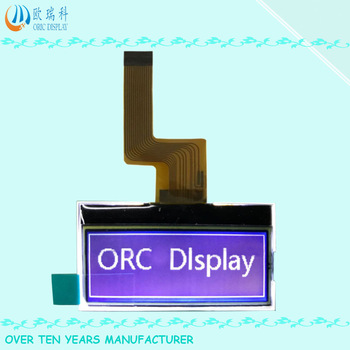

ORC19264-01A3 is a 192x64 dot matrix monochrome LCD module, FSTN LCD, negative display, brightened with white font blue background, working temperature is - 20-70 C, FPC connection, all materials meet the environmental requirements of RoHS standards. This module is widely used in various instruments and intelligent devices.
